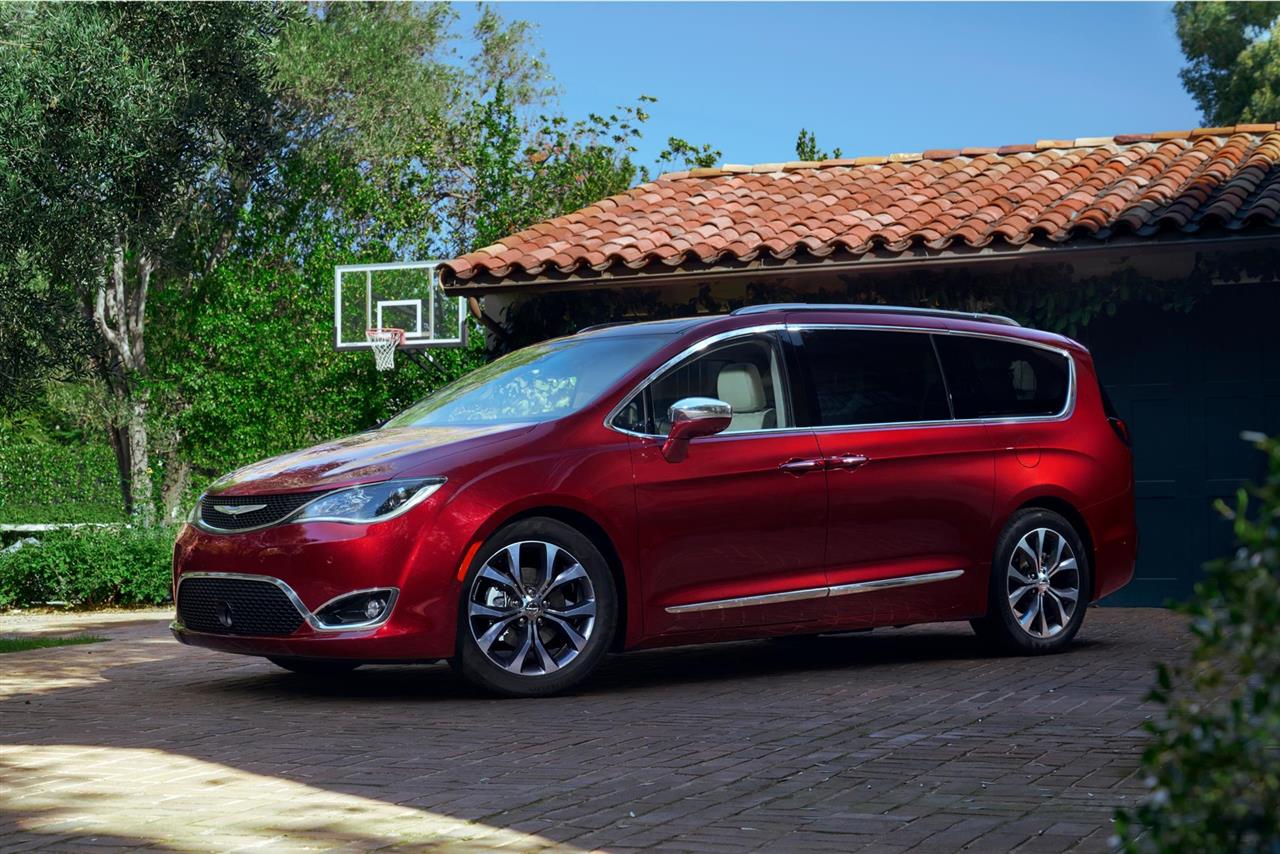

These are standard specifications for the 2017 Chrysler Pacifica, not necessarily specifications for the vehicle(s) in the photo(s).
Transmission:
9 Automatic Electronically controlled automatic
Information provided by NHTSA
Data updated January 2023
Features
| Engine Location : | Front |
| Drive Type : | Front Wheel |
| Body / Chassis : | Steel unibody |
| Production Years for Series : | 2017 - |
| Price : | MSRP: $28,595-42,495 |
| Weight : | 6005 lbs | 2723.822 kg |
| Introduced At : | 2016 Detroit Auto Show |
Performance
| Coefficient of Drag : | 0.300 |
Engine & Transmission
| V 6 60-degree | |
|---|---|
| Displacement : | 3605 cc | 220.0 cu in. | 3.6 L. |
| Power : | 287 HP (211.232 KW) @ 6400 RPM |
| Torque : | 262 Ft-Lbs (355 NM) @ 4000 RPM |
| Bore : | 96.0 mm | 3.78 in. |
| Stroke : | 83.0 mm | 3.268 in. |
| Compression : | 11.3:1 |
| Valvetrain : | 24 DOHC (4 valves per cylinder) |
| Sequential Multiport Fuel Injection | |
| V 6 | |
|---|---|
| Displacement : | 3605 cc | 220.0 cu in. | 3.6 L. |
| Power : | 248 HP (182.528 KW) @ 5800 RPM |
| Torque : | 230 Ft-Lbs (312 NM) @ 4400 RPM |
| Bore : | 96.0 mm | 3.78 in. |
| Stroke : | 83.0 mm | 3.268 in. |
| Compression : | 12.5:1 |
| Valvetrain : | 24 DOHC (4 valves per cylinder) |
| Construction : | Aluminum block and head |
| Redline : | 5800 RPM |
9 Automatic Electronically controlled automatic
Gear Ratios
| 1st Gear : | 4.70 |
| 2nd Gear : | 2.84 |
| 3rd Gear : | 1.91 |
| 4th Gear : | 1.38 |
| 5th Gear : | 1.00 |
| 6th Gear : | 0.81 |
| 7th Gear : | 0.70 |
| 8th Gear : | 0.58 |
| 9th Gear : | 0.48 |
Handling
Recall
| Component | SEAT BELTS:REAR/OTHER |
|---|---|
| Manufacturer | Chrysler (FCA US LLC) |
| Mfr Report Date | 20151101 |
| NHTSA Campaign ID | 17V542000 |
| Summary | Chrysler (FCA US LLC) is recalling certain 2017-2018 Chrysler Pacifica vehicles equipped with the 8-passenger seating option. In certain passenger seating and vehicle situations, the second-row center seating position seat belt buckle could cause the left outboard seat belt to become unlatched. |
| Consequence | Inadvertent unlatching of the left outboard seat belt can increase the risk of injury in the event of a crash. |
| Remedy | Chrysler will notify owners, and dealers will install a shorter second-row seat belt buckle, free of charge. The recall began October 26, 2017. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is T54. |
| Notes | Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov. |
| Component | ELECTRICAL SYSTEM:SOFTWARE |
|---|---|
| Manufacturer | Chrysler (FCA US LLC) |
| Mfr Report Date | 20151123 |
| NHTSA Campaign ID | 18V332000 |
| Summary | Chrysler (FCA US LLC) is recalling certain 2014-2018 Dodge Journey, Charger and Durango, RAM 2500, 3500, 3500 Cab Chassis (more than 10,000lb), 4500 Cab Chassis and 5500 Cab Chassis, Jeep Cherokee and Grand Cherokee and Chrysler 300, 2014-2019 RAM 1500, 2015-2018 Dodge Challenger, 2015-2017 Chrysler 200, 2016-2018 RAM 3500 Cab Chassis (less than 10,000 lb), 2017-2018 Chrysler Pacifica and 2018 Jeep Wrangler vehicles. These vehicles are being recalled to address a defect that could prevent the cruise control system from disengaging. If, when using cruise control, there is a short circuit within the vehicle's wiring, the driver may not be able to shut off the cruise control either by depressing the brake pedal or manually turning the system off once it has been engaged, resulting in either the vehicle maintaining its current speed or possibly accelerating. |
| Consequence | If the vehicle maintains its speed or accelerates despite attempts to deactivate the cruise control, there would be an increased risk of a crash. |
| Remedy | Chrysler will notify owners, and dealers will inspect the software, and perform a software flash on the engine or powertrain control module, free of charge. The recall began June 4, 2018. Owners may contact Chrysler customer service at 1-800-853-1403. Note: Owners are advised to stop using cruise control until the software update has been performed. In the event that cruise control cannot be disengaged while driving, owners should firmly and steadily apply the brakes and shift the transmission to neutral, placing the vehicle in park once it has stopped. |
| Notes | Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov. |
| Component | ELECTRICAL SYSTEM:SOFTWARE |
|---|---|
| Manufacturer | Chrysler (FCA US LLC) |
| Mfr Report Date | 20151123 |
| NHTSA Campaign ID | 18V049000 |
| Summary | Chrysler (FCA US LLC) is recalling certain 2017 Chrysler Pacifica vehicles equipped with a 3.6l engine. The engine control software may become out of sync with the crankshaft position sensor, possibly resulting in an engine stall. |
| Consequence | An engine stall can increase the risk of a crash. |
| Remedy | Chrysler will notify owners, and dealers will update the engine control software, free of charge. The recall began March 7, 2018. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is U01. |
| Notes | Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov. |
| Component | SEAT BELTS:REAR/OTHER |
|---|---|
| Manufacturer | Chrysler (FCA US LLC) |
| Mfr Report Date | 20160222 |
| NHTSA Campaign ID | 16V490000 |
| Summary | Chrysler (FCA US LLC) is recalling certain model year 2017 Pacifica vehicles manufactured February 22, 2016, through April 28, 2016. The center overhead seat belt stow clip may fracture and prevent use of the seat belt in the third-row and/or second-row center passenger seat (if so equipped). |
| Consequence | If passengers occupying the third-row and/or second-row center seats cannot use a seat belt, there is an increased risk of injury in the event of a crash. |
| Remedy | Chrysler will notify owners, and dealers will replace the third-row and, if necessary, second-row center overhead seat belt stow bezel, free of charge. The recall began on July 14, 2016. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is S42. |
| Notes | Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov. |
| Component | EQUIPMENT:ELECTRICAL:ANTI-THEFT DEVICES |
|---|---|
| Manufacturer | Chrysler (FCA US LLC) |
| Mfr Report Date | 20160615 |
| NHTSA Campaign ID | 18V395000 |
| Summary | Chrysler (FCA US LLC) is recalling certain 2017-2018 Chrysler Pacifica vehicles. The Manual Park Release (MPR) plug may be removed without a tool. As such, these vehicles fail to comply with the requirements of Federal Motor Vehicle Safety Standard (FMVSS) number 114, 'Theft Protection.' |
| Consequence | If the MPR is engaged unintentionally, the vehicle could roll away striking and injuring a bystander or cause a crash. |
| Remedy | Chrysler will notify owners, and dealers will replace the MPR plug, free of charge. The recall began July 9, 2018. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is U50. |
| Notes | Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov. |
| Component | POWER TRAIN:DRIVELINE:DIFFERENTIAL UNIT |
|---|---|
| Manufacturer | Vantage Mobility International, LLC |
| Mfr Report Date | 20160729 |
| NHTSA Campaign ID | 17V482000 |
| Summary | Vantage Mobility International, LLC (VMI) is recalling certain 2017 Chrysler Pacifica lowered floor vehicles modified by VMI. The rear pinion bracket on both sides of the vehicle may crack, causing the axle not to be centered and the wheel to wobble. |
| Consequence | A wheel wobble may cause a possible loss of control, increasing the risk of a crash. |
| Remedy | VMI will notify owners, and dealers will replace the pinion brackets, free of charge. The recall began on August 14, 2017. Owners may contact VMI customer service at 1-800-488-9082. VMI's number for this recall is PAC20170728. |
| Notes | Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov. |
| Component | SERVICE BRAKES, HYDRAULIC:FOUNDATION COMPONENTS:HOSES, LINES/PIPING, AND FITTINGS |
|---|---|
| Manufacturer | Vantage Mobility International, LLC |
| Mfr Report Date | 20160729 |
| NHTSA Campaign ID | 17V342000 |
| Summary | Vantage Mobility International, LLC (Vantage Mobility) is recalling certain 2017 Chrysler Pacifica lowered floor vans modified by Vantage Mobility for wheelchair accessibility. The affected vans have rear brake lines that might have been crossed during the modification. As such, these vehicles fail to comply with the requirements of Federal Motor Vehicle Safety Standard number 135, 'Light Vehicle Brake Systems.' |
| Consequence | The crossed rear brake lines will cause the rear anti-lock brake system to be ineffective, increasing the risk of a crash. |
| Remedy | Vantage Mobility will notify owners, and dealers will correct the rear brake line attachments, free of charge. The recall began on July 3, 2017. Owners may contact Vantage Mobility customer service at 1-800-488-9082. Vantage Mobility's number for this recall is Pac-20170525. |
| Notes | Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov. |
| Component | ELECTRICAL SYSTEM:12V/24V/48V BATTERY |
|---|---|
| Manufacturer | Chrysler (FCA US LLC) |
| Mfr Report Date | 20161011 |
| NHTSA Campaign ID | 19V348000 |
| Summary | Chrysler (FCA US LLC) is recalling certain 2017-2019 Pacifica vehicles equipped with engine stop/start systems. A loose battery ground connection may result in an intermittent loss of power steering assist and/or a stall. |
| Consequence | A loss of power steering assist or a stall can increase the risk of crash. |
| Remedy | Chrysler will notify owners, and dealers will inspect the battery ground surfaces, clean the contact surfaces as needed, and properly reassemble the ground connection, free of charge. The recall began May 24, 2019. Owners may contact Chrysler customer service at 1-800-853-1403. FCA US' number for this recall is V53. |
| Notes | Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov. |
Data updated January 2023
2017 Chrysler Pacifica FAQs (show)
Popular frequently asked questions include:
What are the dimension and mechanical specifications of the 2017 Chrysler Pacifica?
Q: What is the wheelbase size of the 2017 Chrysler Pacifica? A: The 2017 Chrysler Pacifica has a wheelbase size of 121.60 inches.Q: What is the length of the 2017 Chrysler Pacifica? A: The 2017 Chrysler Pacifica has a length of 203.60 inches.Q: What is the width of the 2017 Chrysler Pacifica? A: The 2017 Chrysler Pacifica has a width of 79.60 inches.Q: How much headroom does the 2017 Chrysler Pacifica have?A: The 2017 Chrysler Pacifica has 40.10 inches of headroom.Q: How much legroom does the 2017 Chrysler Pacifica have?A: The 2017 Chrysler Pacifica has legroom of 41.10 inches.Q: What is the 2017 Chrysler Pacifica's towing capacity?A: The 2017 Chrysler Pacifica has a towing capaicty of 3600.00 lbs.Q: What is the bodystyle of the 2017 Chrysler Pacifica? A: The 2017 Chrysler Pacifica was a Minivan.Q: How much did the 2017 Chrysler Pacifica cost when new? What was the MSRP? A: The 2017 Chrysler Pacifica had an MSRP of $28,595 - $$42,495 (USD).Q: What engines did the 2017 Chrysler Pacifica have? A: The 2017 Chrysler Pacifica had the following engine options: V 6 (3605 cc | 220.0 cu in. | 3.6 L.) with 287 HP (211.232 KW) @ 6400 RPM and 262 Ft-Lbs (355 NM) @ 4000 RPM V 6 (3605 cc | 220.0 cu in. | 3.6 L.) with 248 HP (182.528 KW) @ 5800 RPM and 230 Ft-Lbs (312 NM) @ 4400 RPM Q: What transmission did the 2017 Chrysler Pacifica have? A: The 2017 Chrysler Pacifica had a 9 speed Automatic Electronically controlled automatic gearbox.
What are the dimension and mechanical specifications of the 2017 Chrysler Pacifica?
How many 2017 Chrysler Pacifica were produced?
How powerful was the 2017 Chrysler Pacifica? Was the 2017 Chrysler Pacifica popular? Was the 2017 Chrysler Pacifica expensive? What was the fuel economy of the 2017 Chrysler Pacifica?
Q: What is the wheelbase size of the 2017 Chrysler Pacifica? A: The 2017 Chrysler Pacifica has a wheelbase size of 121.60 inches.Q: What is the length of the 2017 Chrysler Pacifica? A: The 2017 Chrysler Pacifica has a length of 203.60 inches.Q: What is the width of the 2017 Chrysler Pacifica? A: The 2017 Chrysler Pacifica has a width of 79.60 inches.Q: How much headroom does the 2017 Chrysler Pacifica have?A: The 2017 Chrysler Pacifica has 40.10 inches of headroom.Q: How much legroom does the 2017 Chrysler Pacifica have?A: The 2017 Chrysler Pacifica has legroom of 41.10 inches.Q: What is the 2017 Chrysler Pacifica's towing capacity?A: The 2017 Chrysler Pacifica has a towing capaicty of 3600.00 lbs.Q: What is the bodystyle of the 2017 Chrysler Pacifica? A: The 2017 Chrysler Pacifica was a Minivan.Q: How much did the 2017 Chrysler Pacifica cost when new? What was the MSRP? A: The 2017 Chrysler Pacifica had an MSRP of $28,595 - $$42,495 (USD).Q: What engines did the 2017 Chrysler Pacifica have? A: The 2017 Chrysler Pacifica had the following engine options: V 6 (3605 cc | 220.0 cu in. | 3.6 L.) with 287 HP (211.232 KW) @ 6400 RPM and 262 Ft-Lbs (355 NM) @ 4000 RPMSimilarly Sized Vehicles
