1910 Stanley Model 60 news, pictures, specifications, and information
Runabout
The Stanley Steamer Model R Roadster was the creation of a famous American automobile design team: the Stanley twins, Francis and Freelan. The brothers were partners in a photographic dry-plate business in Massachusetts when they developed their first steam car in 1897. An instant success, they sold over 200 of the 1897 vehicle in its first year of production, and the Stanley brothers began their manufacturing career.

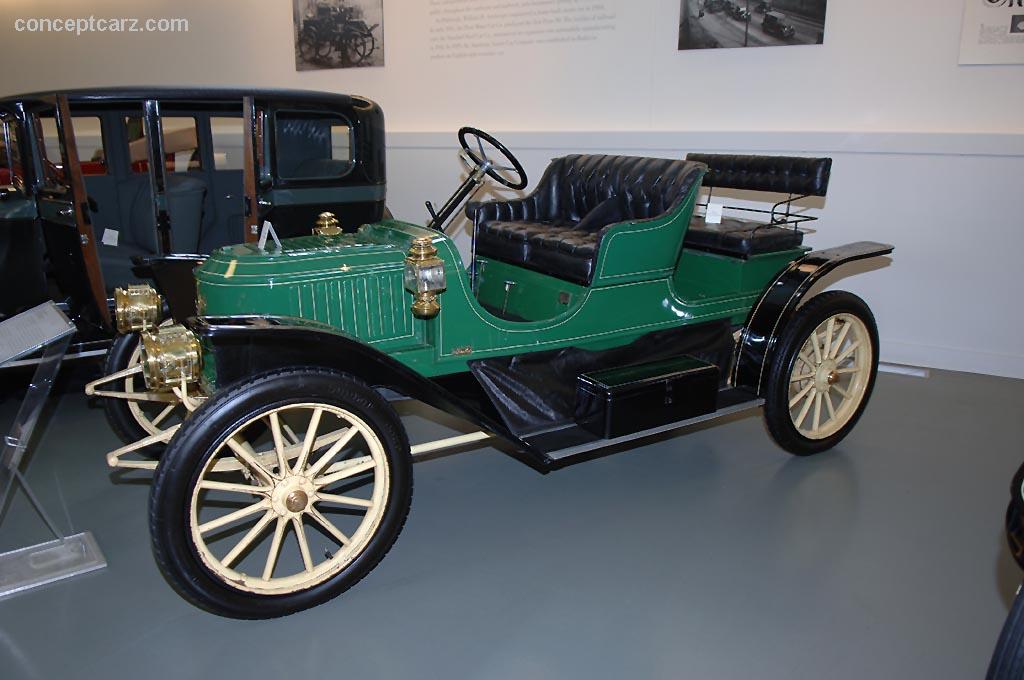

This Stanley Steamer Model 60 was a high-powered car suitable for hilly regions such as Pittsburgh, PA because it did not falter on hills as a gasoline engine might. In addition, it did not stall or overheat on city streets as was common to many cars of the time.

The Stanley Steamer was capable of reaching speeds of between 60 and 70 miles per hour, causing the growing conflict over speed regulation between authorities and motorists to intensify.

The authorities believed that the 'reasonable and proper' speed standard for horse-drawn carriages should apply to automobiles as well. However, the top speeds for horse-drawn vehicles ranged from only 8 to 15 miles per hour, and in the early 1900s carriages comprised the bulk of traffic on the roads. Many motorists were unwilling to restrain themselves to 'reasonable and proper' limits. There was growing concern about speeding and reckless driving. By 1909, every state had enacted some type of speed legislation in an attempt to ease conflicts and dangers on America's roads, due partially to the power of vehicles such as the Stanley Steamer.

Source - Frick
The Stanely Motor Carriage Company produced steam powered automobiles during the early 1900's. The automobile had just been created and many individuals and companies were experimenting with a wide variety of fuel sources, such as gasoline, electric, and steam. These three sources were the primary sources with each having benefits and limitations. The electric vehicles were limited on their range but they were clean, quiet and easy to start. The steam powered vehicles were also clean and quiet but they required a few minutes before starting to allow steam to form. The gasoline engine was noisy, dirty, and hard to start but showed the most potential. The advent of the electric starter around 1914 meant the demise of the other fuel sources.

Twins Francis Edgar and Freelan O. Stanley were born in 1849. Francis passed away in 1918 and Freelan survived until 1940. Their first glimpse of business ingenuity was shown at an early age when they opened a photographic dry plate business which they eventually sold to Eastman Kodak. They became interested in the horseless carriage and in 1897 had created their first automobile. The eventually sold the rights of their design to Locomobile.

The brothers produced steam powered vehicles from 1902 through 1917, known as the Stanley Steamers. Throughout the years the configuration of the vehicles, the complexity of the engines, and the mechanical components were all greatly improved.

The cars were simple yet complex, and rather ingenious. The frame was constructed of tubular steel and suspended by full-elliptic springs. Wooden bodies were built atop of the frames with a boiler mounted beneath the seat. A petroleum burner, later replaced by kerosene, was placed underneath the vertical fire-tube boiler and generated the steam. Piano-wire was used to reinforce the enclosure. By using piano wire, a low overall weight was maintained while increasing the structural rigidity of the boiler. The vertical fire-tubes were made of copper and later replaced with welded steel. A thick chain was connected from the engine crankshaft to a rear-mounted differential.

The boilers were made safe by incorporating certain safety valves that could be used to release pressure. Even with these safety valves, there was still concern of the boiler shell bursting. The boiler was made up of many joints and in the cases of excessive pressure, these joints would fail and release that pressure, extinguishing the burner, and subside the potential catastrophe.

The name 'coffin bonnet' was coined when the broiler was moved to the front of the vehicle, creating an appearance similar to other cars of the era. By moving it to the front of the vehicle, the noise generated by the boiling steam was slightly subsided for the passengers.

By 1917 the Stanley brothers sold their company to Prescott Warren who continued to build the steam powered car until 1927. The demise of the company was slow but much anticipated. The automobile was rapidly evolving while the Steamer was stagnate. Gasoline was inexpensive and reliable and more importantly, cheap. Steam powered cars sold for around $4000 while the Ford and Chevrolet, to name a few, were producing cars under $1000. Gasoline engines were increasing in size, capacity, and output while the steam cars hovered around 20 horsepower.

One of the most famous Steam powered cars is the Stanley Rocket which captured a land speed record for steam at 127.7 mph at the Daytona Beach Road Course. Driven by Fred Marriott, he easily secured the Dewar International Trophy awarded to the vehicle with the fastest measured mile time, which he accomplished in just 28.5 seconds.

The Stanley Rocket was designed to have limited drag. It was similar in shape to a canoe. It was long and narrow, at 16 feet long and 3 feet wide at its widest point. Most of the components of the car were housed within the body which increased aerodynamics. The 3.1 liter engine was a twin-piston double acting type that was capable of producing a reported 275 or 1000 psi at 700 degrees F. The entire vehicle weighed less than 1680 pounds.

About the Engines
The Stanley Steamers used water converted into steam to power the vehicles drive mechanism. What is generally not realized is that the boiler required fuel to generate the heat to make the conversion possible. The Stanleys fuel diet was flexible and able to except a variety of fuels to create the heat. Generally, the fuel of choice was hexane as the pilot fuel and kerosene as the running fuel. Other liquid fuels included gasoline, diesel, white gas and various soy fuels.

It is difficult to vaporize kerosene and a more volatile fuel source was needed, thus the hexane to ignite the kerosene used to heat the boiler. The hexane served as a pilot fuel that began the steaming process. Once the burner area was hot enough to vaporize the kerosene, the pilot fuel is turned off and the main fuel source is used. The kerosene would burn at a rate of about one gallon every 8-12 miles. Water had a broader range depending on if the car was a non-condensing or condensing. A non-condensing car went through a gallon of water ever one or two miles. A condensing car was higher, at about 8-12 mpg. The condensing cars reused steam. The non-condensing cars, the early Stanley Steamers, would discharge the used steam out of the car. This type of engine was simple, required few parts, and were not as prone to rusting as were the non-condensing cars.

Non-condensing Stanleys entered production around 1914, in response to customers demands for greater MPG (water). The cars are distinguishable by their front-mounted radiator, similar to modern cars. The radiator would condense the steam and returned the water back to the water tank. This increased miles-per-gallon, but it introduced a slew of other problems due to the more-complex engine.
By Daniel Vaughan | Jul 2007
Toy Tonneau
The Stanley Motor Carriage Company was founded in 1902 by brothers Francis and Freelan Stanley after selling their photographic dry plate business to Eastman Kodak. They built their first car in 1897 and sold over 200 cars, more than any other United States maker during 1898-99. One of these cars was the first to climb Mount Washington in New Hampshire, taking over two hours for the climb. They sold the rights of this early design to Locomobile and formed their company in 1902.

Early Stanleys had light wooden bodies mounted on tubular steel frames with full-elliptic springs. The cars were powered by a 10 horsepower non-condensing 18' by 14' fire tube boiler made up of 760 tubes 14 inches long. The main burner is fired with kerosene and the pilot uses white gas. There is no transmission and the engine is connected directly to the rear axle. The car uses on gallon of water per mile and 10 mpg of fuel. Stanley Steamers prices started at $875 in 1910 and 670 were sold.

With the invention of the electric starter, internal combustion engines took over the automobile car market during the mid-teens and the Stanley factory closed for good in 1924.
