Brembo Brake Facts for Formula 1 at the Azerbaijan Grand Prix

June 3, 2021 by Brembo

Guide to Brembo brakes and their use in the Azerbaijan Grand Prix, plus its range of brake pads for street cars.

DETROIT, (June 3, 2021) - Brembo engineers offer a guide to braking for this weekend's Formula 1 Azerbaijan Grand Prix to run at the Baku City Circuit, June 4-6.

After a year's absence, Formula One cars will once again speed through the streets of Baku for the fifth time in six years. The Azerbaijan track is classified as one of the most demanding tracks for brakes. On a scale of 1 to 5, it earned a four on the difficulty index, the same as the Sakhir Circuit.

The layout includes four 90° corners at the start which are highly demanding on the brakes, followed by other turns where the angle changes continuously and, consequently, so does the use of the brakes. The track has several technical corners like Turn 8 near the old town fortifications where there is no room for error.

Half a pound of brake pads, please!​

In addition to aluminum-lithium calipers and carbon fiber discs, Brembo also supplies its teams with brake pads, also made from carbon fiber, Brembo makes five different types for the front and two variations for the rear. They vary according to the specifications of the material used, the internal ventilation and the geometry.

The length of each pad ranges from 160 to 190 mm (6.3 to 7.4 in.) and the surface area from 50 to 90 cm2 (0.05 to 0.09 ft2) whereas the weight varies from 150 to 300 grams (0.3 to 0.66 lbs.). The pads have a friction coefficient of 0.5 and the operating temperature is the same as the discs – they both have very high thermal conductivity since they are in direct contact and made from similar materials.

An endless range of brake pads for street-legal cars​

---

Trending News

• Broad Arrow adds Ferrari F40 'Competizione' and Pagani Huayra R to its best-of-category Concorso d'Eleganza Villa d'Este Auction lineup
• The Ferrari 12Cilindri and the 12Cilindri Spider win the iF Design Gold Award
• Tire Rack and WeatherTech Raceway Laguna Seca Ink New Circuit and Race Sponsorships
• Power is in the small details: celebrating the achievements of Bugatti's service partners
• BMW NA 50th Anniversary | 50 Stories for 50 Years Chapter 17: 'BMW M Achieves Wide Appeal: Unique E36 M3 Models for the U.S.'

---

Thanks to the experience it has gained in 46 years of Formula 1 and its collaboration with car manufacturers, Brembo has developed a range of brake pads for street cars which guarantee maximum performance when braking. Through constant research and extensive laboratory and road tests, it has produced over 100 different compounds.

The aim is to offer the best solution for each type of vehicle and driving style, both in terms of performance and comfort, as well as guaranteeing a low noise level.

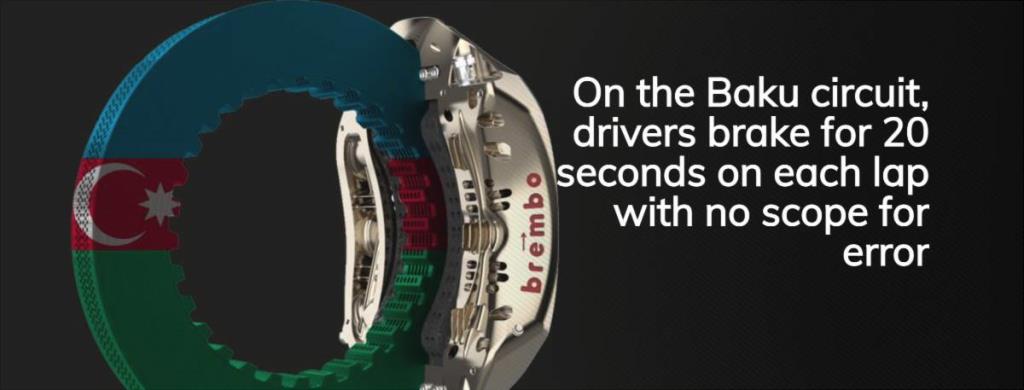

Drivers brake for 20 seconds on each lap​

Six km (3.7 mi) long with 11 braking zones, the brakes are used for just under 20 seconds per lap. This is twice as much as on the Imola track and 1.2 seconds more than Monaco. Despite this, at Baku, the load on the brake pedal from start to finish is lower, 53.5 metric tons.

​In five of the 11 braking sections, the load does not even reach 90 kg (198 lbs.) even if in one of these, deceleration is just 3.8 G and braking lasts for 1.86 seconds. In four braking sections, on the other hand, the brake system is in use for over 2.13 seconds even if the load on the brake pedal reaches a peak of 166 kg (366 lb) and does not exceed 140 kg (308 lbs.) in the other cases.

5.5 G of deceleration after the starting line​​​

Of the 11 braking sections of the Baku City Circuit, four are classified as very demanding on the brakes, another four are of medium difficulty, and the remaining three are light.

The most challenging one for the braking system is the first corner: The single-seaters come into it at 334 km/h (207.5 mph) and then slow down to 125 km/h (77.6 mph) in just 1.85 seconds. To do this, drivers apply a load of 131 kg (288 lbs.) on the brake pedal and undergo a deceleration of 5.5 G as they cover a distance of 107 meters (117 yards).
