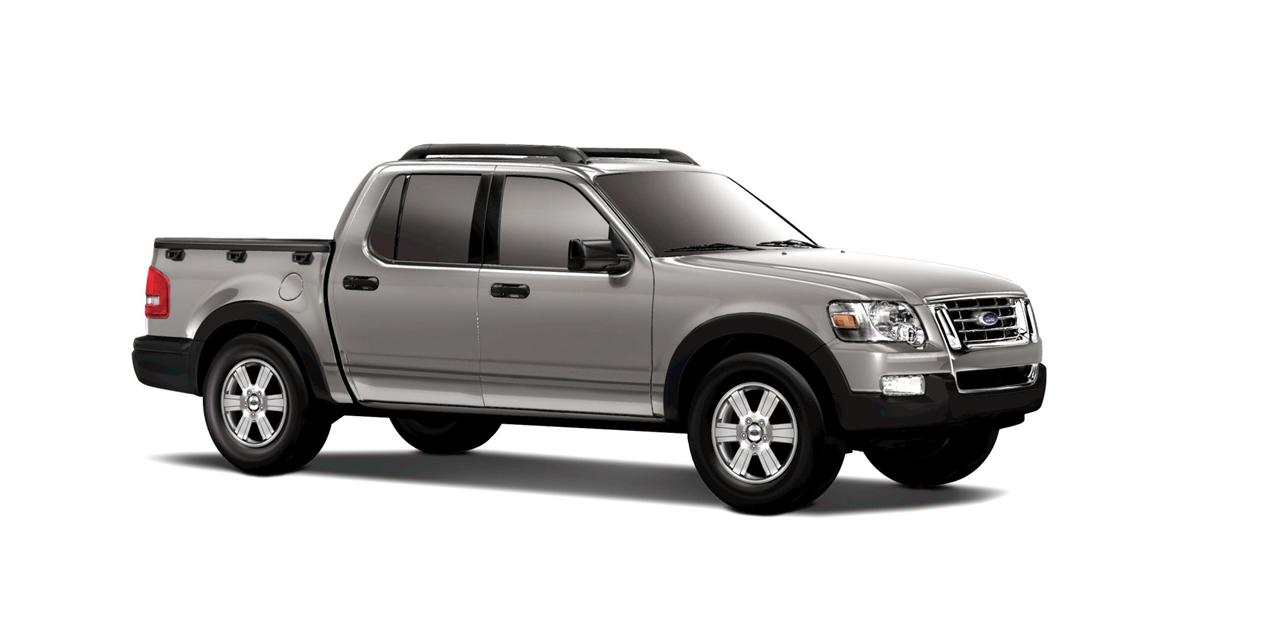

2010 Ford Explorer Sport Trac Specifications

2010 Ford Explorer Sport Trac
2010 Ford Explorer Sport Trac Navigation
  • Article
  • Image gallery
  • Valuation
  • Specifications
  • Recalls

    • Engine Location : Front
    Drive Type : Rear Wheel (standard), 4WD
    Body / Chassis : Steel body on fully boxed frame
    Price : MSRP: $27,810-35,190
    Invoice: $25,935-32,650
    Weight : 4583 lbs | 2078.814 kg
    MPG City : 14
    MPG Highway : 20
    V 6
    Displacement : 4015 cc | 245.0 cu in. | 4.0 L.
    Power : 210 HP (154.56 KW) @ 5100 RPM
    Torque :254 Ft-Lbs (344 NM) @ 3700 RPM
    Bore : 4.0 in | 100 mm.
    Stroke : 3.3 in | 84 mm.
    Compression : 9.7:1
    Valvetrain : 12 SOHC (2.0 valves per cylinder)
    Cylinder Block : Cast-iron
    Cylinder Head : Aluminum
    Sequential Multiport Fuel Injection
    Redline : 6000 RPM
    Ignition system :Distributorless with Coil Pack
    Intake manifold :Composite, Shell Welded with Internal Runner Pack
    Exhaust manifold :Cast Iron
    Crankshaft :Cast Iron
    Throttle body :65mm
    Pistons :Hypereutectic Aluminum
    Connecting rods :Forged Steel
    V 8 | Variable Camshaft Timing
    Displacement : 4605 cc | 281.0 cu in. | 4.6 L.
    Power : 292 HP (214.912 KW) @ 5700 RPM
    Torque :315 Ft-Lbs (427 NM) @ 4000 RPM
    Bore : 3.6 in | 90 mm.
    Stroke : 3.5 in | 90 mm.
    Compression : 9.8:1
    Valvetrain : 24 SOHC (3.0 valves per cylinder)
    Cylinder Block : Cast-iron
    Cylinder Head : Aluminum
    Sequential Multiport Fuel Injection
    Redline : 6250 RPM
    Ignition system :Coil-on-Plug, High-Thread-Insert Spark Plugs
    Intake manifold :Composite Shell-Welded Single Runner, Charge Motion Control Valves
    Exhaust manifold :Cast Iron
    Crankshaft :Cast Iron
    Throttle body :75mm
    Pistons :Hypereutectic Aluminum
    Connecting rods :Cracked Powdered Metal with Floating Wristpins
    Transmission:
    5 Overdrive , 6 Automatic Overdrive

    1st Gear : 3.22:1
    2nd Gear : 2.29:1
    3rd Gear : 1.55:1
    4th Gear : 1.00:1
    5th Gear : 0.71:1
    NHTSA Crash-Test Results
    2010 Ford Explorer Sport Trac 4-DR. w/SAB
    Frontal driver : NHTSA Safety data vehicle rating
    Frontal passenger : NHTSA Safety data vehicle rating
    Side driver : NHTSA Safety data vehicle rating
    Side rear passenger : NHTSA Safety data vehicle rating
    Rollover 2 Wheel Drive : NHTSA Safety data vehicle rating
    Rollover 4 Wheel Drive : NHTSA Safety data vehicle rating

    Component

    SEATS:FRONT ASSEMBLY:RECLINER

    Manufacturer

    FORD MOTOR COMPANY

    Mfr Report Date20091211
    NHTSA Campaign ID10V161000
    SummaryFORD IS RECALLING CERTAIN MODEL YEAR 2010 FUSION, EXPLORER, EXPLORER SPORT TRAC, AND MERCURY MILAN AND MOUNTAINEER VEHICLES MANUFACTURED BETWEEN DECEMBER 15, 2009 THROUGH FEBRUARY 3, 2010 EQUIPPED WITH FRONT SEAT MANUAL RECLINERS. THESE VEHICLES FAIL TO COMPLY WITH THE REQUIREMENTS OF FEDERAL MOTOR VEHICLE SAFETY STANDARD NO. 202, 'HEAD RESTRAINT.' THE RECLINER GEAR PLATE TEETH MAY BE OUT OF DIMENSION SPECIFICATION WHICH COULD RESULT IN LIMITED PAWL TO GEAR PLATE TOOTH ENGAGEMENT.
    ConsequenceIN THE EVENT OF A CRASH, THE SEATBACK AND HEAD RESTRAINT MAY MOVE REARWARD, INCREASING THE RISK OF INJURY.
    RemedyDEALERS WILL REPLACE THE MANUAL RECLINERS FOR BOTH POWER AND MANUAL SEATS FREE OF CHARGE. THE SAFETY RECALL IS EXPECTED TO BEGIN ON OR BEFORE APRIL 30, 2010. OWNERS MAY CONTACT FORD AT 1-866-436-7332.
    NotesOWNERS MAY ALSO CONTACT THE NATIONAL HIGHWAY TRAFFIC SAFETY ADMINISTRATION'S VEHICLE SAFETY HOTLINE AT 1-888-327-4236 (TTY 1-800-424-9153), OR GO TO

    Information provided by NHTSA
    Data updated June 2024
    2010 Averages
    Avg. Home : $184,000
    Avg. Gallon of Gas : $2.74
    Avg. Stamp : $0
    Total Car Production : 7,743,093

    For additional safety information and testing procedures, please visit the NHTSA website.

    Popular frequently asked questions include:

    What are the dimension and mechanical specifications of the 2010 Ford Explorer Sport Trac?
    How many 2010 Ford Explorer Sport Trac were produced?
    How powerful was the 2010 Ford Explorer Sport Trac? Was the 2010 Ford Explorer Sport Trac popular? Was the 2010 Ford Explorer Sport Trac expensive? What was the fuel economy of the 2010 Ford Explorer Sport Trac?

    Q: What is the length of the 2010 Ford Explorer Sport Trac? A: The 2010 Ford Explorer Sport Trac has a length of 210.20 inches.

    Q: What is the width of the 2010 Ford Explorer Sport Trac? A: The 2010 Ford Explorer Sport Trac has a width of 73.70 inches.

    Q: How much headroom does the 2010 Ford Explorer Sport Trac have?A: The 2010 Ford Explorer Sport Trac has 39.80 inches of headroom.

    Q: How much legroom does the 2010 Ford Explorer Sport Trac have?A: The 2010 Ford Explorer Sport Trac has legroom of 42.40 inches.

    Q: What is the 2010 Ford Explorer Sport Trac's towing capacity?A: The 2010 Ford Explorer Sport Trac has a towing capaicty of 5250.00 lbs.

    Q: What is the bodystyle of the 2010 Ford Explorer Sport Trac? A: The 2010 Ford Explorer Sport Trac was a Truck.

    Q: How much did the 2010 Ford Explorer Sport Trac cost when new? What was the MSRP? A: The 2010 Ford Explorer Sport Trac had an MSRP of $27,810 - $$35,190 (USD).

    Q: What engines did the 2010 Ford Explorer Sport Trac have? A: The 2010 Ford Explorer Sport Trac had the following engine options: V 6 (4015 cc | 245.0 cu in. | 4.0 L.) with 210 HP (154.56 KW) @ 5100 RPM and 254 Ft-Lbs (344 NM) @ 3700 RPM
  • V 8 (4605 cc | 281.0 cu in. | 4.6 L.) with 292 HP (214.912 KW) @ 5700 RPM and 315 Ft-Lbs (427 NM) @ 4000 RPM

    • Q: What transmissions did the 2010 Ford Explorer Sport Trac have? A: The 2010 Ford Explorer Sport Trac had the following gearbox options: 5 speed Overdrive, 6 speed Automatic Overdrive.
