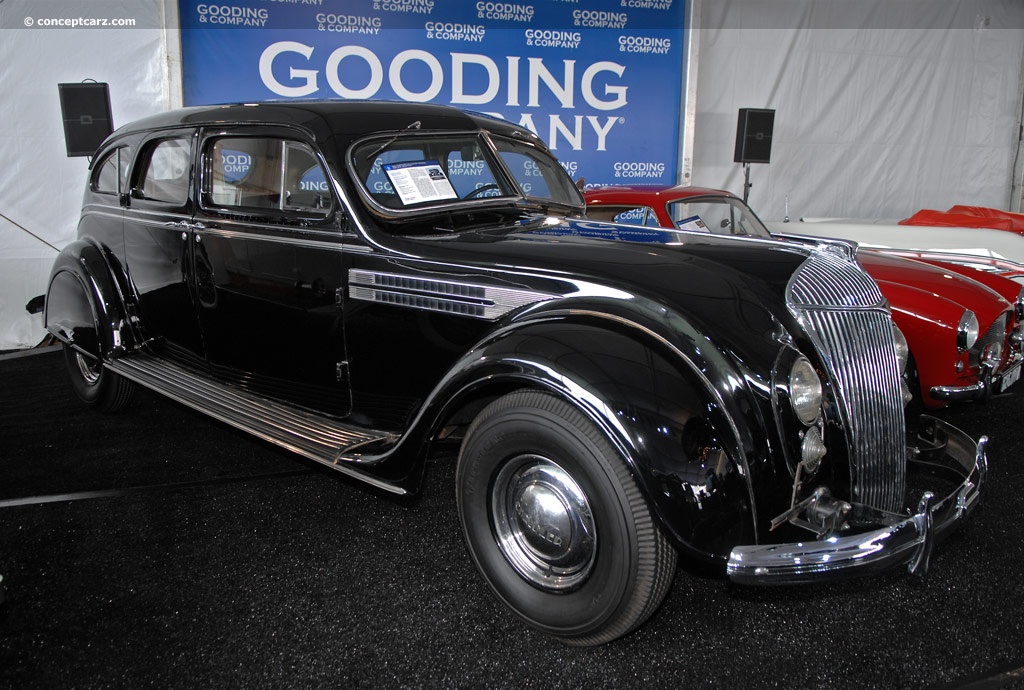

1936 Chrysler Custom Imperial Airflow C11 Specifications

Specifications

1934 1935 1936 1937

Features

Engine Location :	Front
Drive Type :	Rear Wheel
Production Years for Series :	1934 - 1937
Price :	$2,475-$2,575

Engine & Transmission

Inline 8 \| L-Head
Displacement :	5301 cc \| 323.5 cu in. \| 5.3 L.
Power :	130 HP (95.68 KW) @ 3400 RPM
Torque :	250 Ft-Lbs (339 NM) @ 1600 RPM
Bore :	3.3 in \| 83 mm.
Stroke :	4.9 in \| 124 mm.
Compression :	6.5:1
Main Bearings :	5
Cylinder Block :	Cast-iron

Inline 8 \| L-Head
Displacement :	5301 cc \| 323.5 cu in. \| 5.3 L.
Power :	138 HP (101.568 KW) @ 3400 RPM
Torque :	265 Ft-Lbs (359 NM) @ 1600 RPM
Bore :	3.3 in \| 83 mm.
Stroke :	4.9 in \| 124 mm.
Compression :	7.45:1
Main Bearings :	5
Cylinder Block :	Cast-iron

Transmission:
4 Automatic Floor shift controls.

Production Figures

Total Chrysler Production for 1936 :	71,295
1936 Chrysler Custom Imperial Airflow C11
Sedan 4 dr. 5 P :	38
Sedan Limousine 4 dr. 7 P :	37

Dimension(s)

Sedan

Exterior
Seating Capacity :	5
Doors :	4
Wheelbase :	137.0 in \| 3480 mm.

Sedan Limousine

Chassis # 7803894
Engine # C11-1049
View info And history
Auction entries : 1

Exterior
Price :	$2,575
Seating Capacity :	7
Doors :	4
Wheelbase :	137.0 in \| 3480 mm.

Handling

Tires / Wheels
Tires :	16x7.50
Wheels :	Steel-spoke

1936 Averages

Avg. Household Income :	$1,713
Avg. Home :	$3,925
Avg. Gallon of Gas :	$0.10

1936 Chrysler Custom Imperial Airflow C11 FAQs (show)

Popular frequently asked questions include:

What are the dimension and mechanical specifications of the 1936 Chrysler Custom Imperial Airflow C11?
How many 1936 Chrysler Custom Imperial Airflow C11 were produced?
How powerful was the 1936 Chrysler Custom Imperial Airflow C11? Was the 1936 Chrysler Custom Imperial Airflow C11 popular? Was the 1936 Chrysler Custom Imperial Airflow C11 expensive? What was the fuel economy of the 1936 Chrysler Custom Imperial Airflow C11?

Q: What is the wheelbase size of the 1936 Chrysler Custom Imperial Airflow C11? A: The 1936 Chrysler Custom Imperial Airflow C11 has a wheelbase size of 137.00 inches.

Q: How much did the 1936 Chrysler Custom Imperial Airflow C11 cost when new?A: The 1936 Chrysler Custom Imperial Airflow C11 cost approximately $2,475 to $2,575 (USD) when new.

Q: What were the bodystyles of the 1936 Chrysler Custom Imperial Airflow C11? A: The 1936 Chrysler Custom Imperial Airflow C11 was offered as a Sedan, Sedan Limousine.

Q: What tires did the 1936 Chrysler Custom Imperial Airflow C11 have? A: The 1936 Chrysler Custom Imperial Airflow C11 had 16x7.50 tires.

Q: What type of wheels did the 1936 Chrysler Custom Imperial Airflow C11 have? A: The 1936 Chrysler Custom Imperial Airflow C11 had Steel-spoke wheels.

Q: How many vehicles did Chrysler produce in 1936? A: Chrysler produced 71,295 automobiles in 1936.

Q: What engines did the 1936 Chrysler Custom Imperial Airflow C11 have? A: The 1936 Chrysler Custom Imperial Airflow C11 had the following engine options: Inline 8L-Head (5301 cc | 323.5 cu in. | 5.3 L.) with 130 HP (95.68 KW) @ 3400 RPM and 250 Ft-Lbs (339 NM) @ 1600 RPM

Inline 8L-Head (5301 cc | 323.5 cu in. | 5.3 L.) with 138 HP (101.568 KW) @ 3400 RPM and 265 Ft-Lbs (359 NM) @ 1600 RPM

Q: What transmission did the 1936 Chrysler Custom Imperial Airflow C11 have? A: The 1936 Chrysler Custom Imperial Airflow C11 had a 4 speed Automatic Floor shift controls. gearbox.
