 Maserati Quattroporte photo

1966 Maserati Quattroporte

The Maserati Quattroporte was unveiled at the Torino Motor Show in 1963 and entered production a short time later. It wore styling by the Turinese coachbuilder Pietro Frua who used design inspiration from a Maserati 5000 GT (chassis number 103.060) which had been created for Prince Karim Aga Khan in the early 1960s. The construction of the Quattroporte was handled by Carrozzeria Alfredo Vignale Vignale.

The Quattroporte used a steel unibody structure with a front subframe. In the front was an independent suspension system comprised of coil springs and hydraulic dampers. The back used a coil-sprung De Dion tube with inboard brakes on the first series. Anti-roll bars were used in the front and back. Braking power was supplied by solid Girling discs at all four corners.

The Quattroporte was powered by a new, all-aluminum V8 engine that used two chain-driven overhead camshafts per bank, hemispherical combustion chambers, inserted cast iron wet cylinder liners, and four downdraft twin-choke Weber carburetors. It had 32 angled valves and a water-cooled inlet manifold.

Production of the first Series Maserati Quattroporte (Tipo AM107) lasted until 1966 with 230 examples produced. The name 'Quattroporte' translated from Italian to 'four doors.' These full-size luxury sports saloons were equipped with a 4.1-liter V8 engine delivering 260 horsepower at 5,000 RPM and backed by either a five-speed ZF manual transmission or three-speed Borg-Warner automatic. The potent powerplant gave these Grand Touring automobiles a top speed of approximately 143 mph.

The Quattroporte models exported to the United States were modified to comply with federal regulations resulting in twin round headlamps in place of the single rectangular ones found on European models. In 1966, the round headlamp styling became standard on all Quattroportes, and a leaf-sprung solid axle replaced the previous De Dion tube. Inside, the interior was completely new with a new dashboard that housed a full-width wood-trimmed fascia.

For 1968, a 4.7-liter engine option became available (AM107/4700), developing nearly 290 horsepower. This engine gave the Quattroporte a top speed of nearly 160 mph making them the fastest four-door sedan in the world at the time.

Production of the Series II Quattroporte lasted from 1966 through 1969.


by Daniel Vaughan | Jul 2020

Related Reading : Maserati Quattroporte History

Quattroporte, meaning four-doors in Italian, was a luxury automobile produced by Maserati at various times during its history. The first example was introduced in 1962 when Prince Karim Aga Khan ordered a unique automobile to be constructed from designs created by Pietro Frua. The following year, Maserati introduced their own version of the Quattroporte, based on the Frua designs. Under the bonnet....
Continue Reading >>

Related Reading : Maserati Quattroporte History

In 1965 Maserati introduced the Quattroporte I, the first edition was introduced. Produced for 5 years, the word Quattroporte comes from the Italian word meaning ‘four-door. The original model was a sportluxury sedan that featured a slightly detuned sport-racing V8 engine. The modest flagship for Maerati, the Quattroporte I featured 260 horsepower, 4.2-liter four-cam aluminum V8 from the 450 S.....
Continue Reading >>

1966 Vehicle Profiles

1966 Maserati Quattroporte vehicle information

Sedan
Coachwork: Vignale
Designer: Frua

Chassis Num: AM 107 1084
Engine Num: AM 107 1084

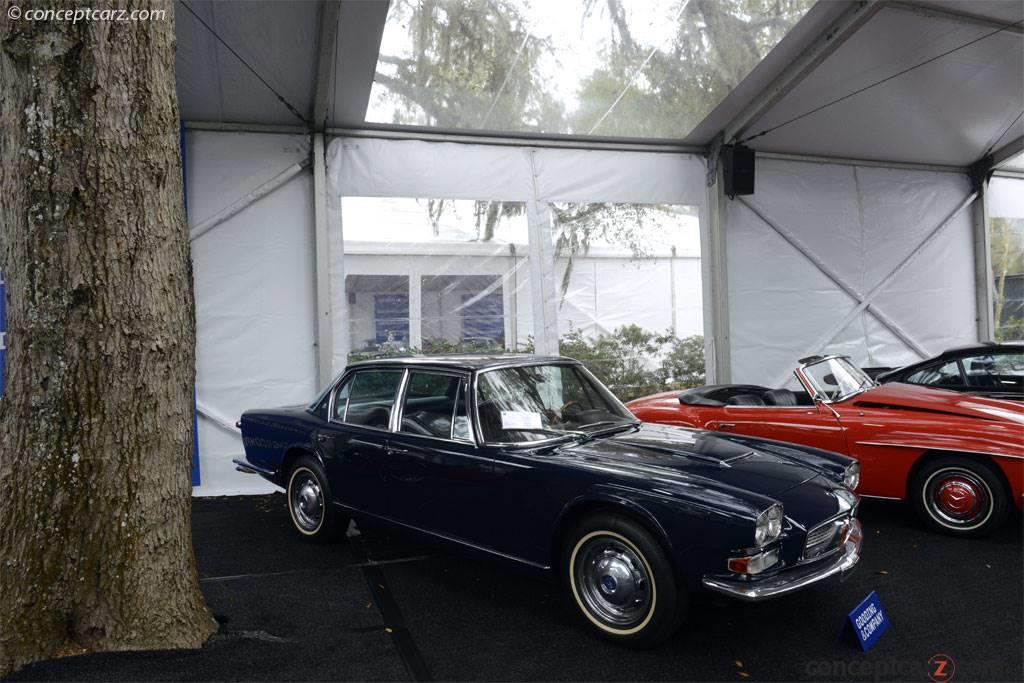

This Maserati Quattroporte is a Series II, identifiable by its revised dashboard and quad headlights. This original example has been refinished in dark blue but retains its original leather interior. The current owner acquired this four-door luxury s....[continue reading]

Sedan by Vignale
Chassis #: AM 107 1084

Recent Vehicle Additions

Performance and Specification Comparison

Price Comparison

$1,240-$13,350
1966 Quattroporte
$13,350-$31,400
1966 Maserati Quattroporte Base Price : $13,350
